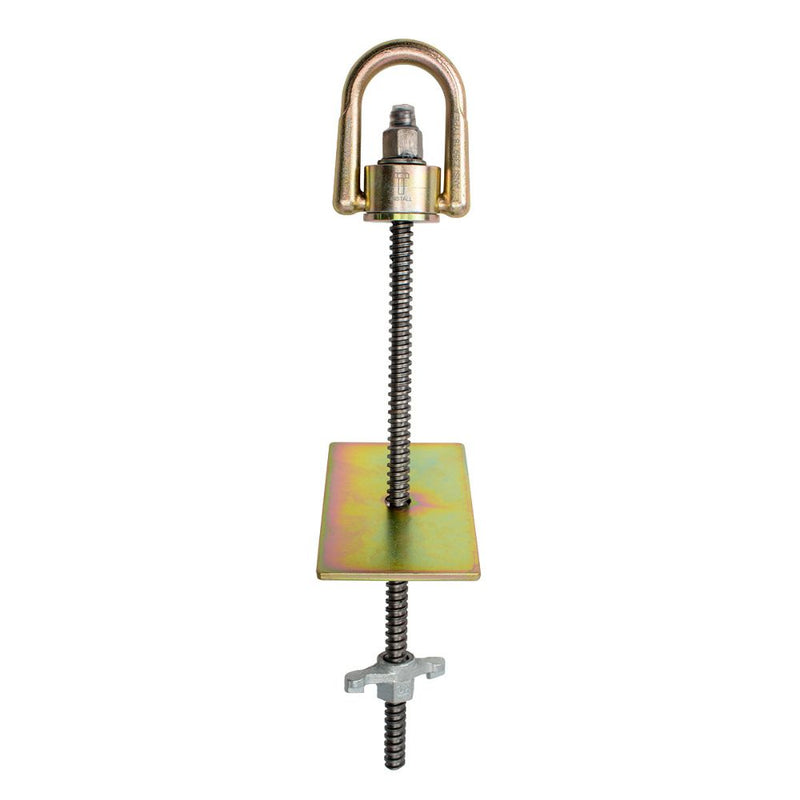

Safewaze 021-4043 10K Swivel Anchor & Back Plate
by SafeWaze
Sold out
Original price
$174.00
Original price
$174.00
-
Original price
$174.00
Original price
$174.00
Current price
$108.75
$108.75
-
$108.75
Current price
$108.75
INCLUDES:
• (1) Swivel Anchor & Back Plate
FEATURES:
• Versatile use
• 5/8? bolt and wingnut
• Maximum span up to 12?
• Use with 10K Swivel Anchor
SPECIFICATIONS:
• Materials: Zinc-Plated Steel
• Length: 6" x 4" x 1/4"
• Breaking Strength: 10,000 lbs. Minimum
• ANSI Weight Capacity: 130-310 lbs. (59-141 kg)
• OSHA Weight Capacity: Up to 420 lbs. (191 kg)
• ANSI Standards: Z359.18-2017 Type A, A10.32
• OSHA Standards: 1926.502, 1910.66
The Back Plate Anchor is designed for use on reinforced cinder block, chillers, metal structures or AC unit walls from 4" to 12". This plate assembly includes the 10K Swivel anchor and fastener.
