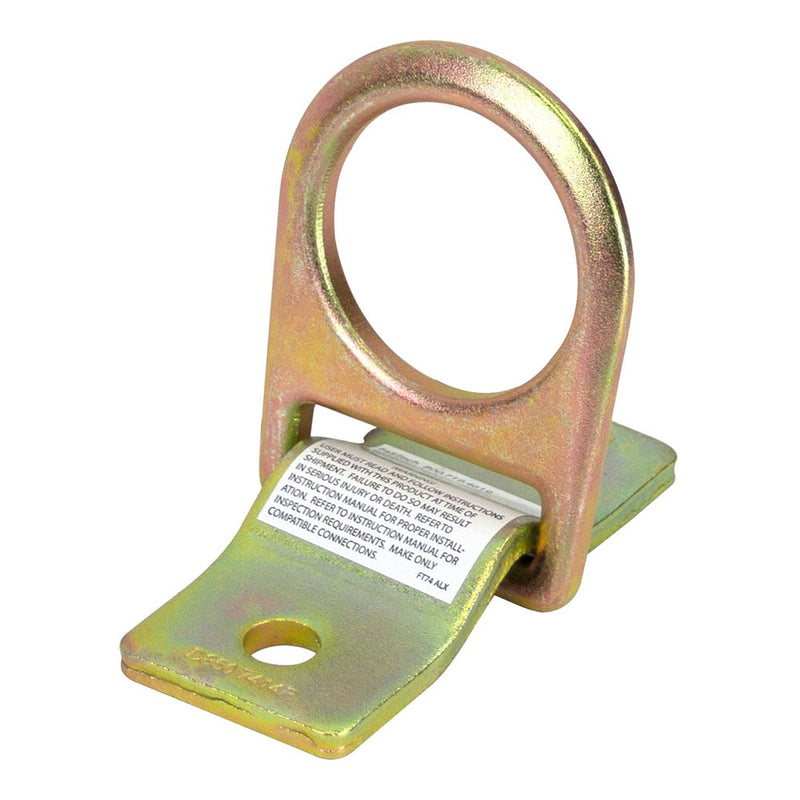

Falltech 7414 Forged Steel Bolt-On D-Ring Anchorage

Original price $36.50
Original price $36.50 - Original price $36.50
Original price $36.50
Current price $29.20
$29.20 - $29.20
Current price $29.20
• (1) Bolt-on anchorage

• 2" x 4-1/2 plate with 1/2" holes
• Heavy-duty steel construction
• For use on steel I-beams, columns and other steel structures
• Mounted with 1/2", grade 5 bolts, nuts and lockwashers.
• Rated at over 5,000 lbs.
• Meets the requirements of OSHA 1926 and ANSI Z359.

• Plate: SAE 1008 steel
• D?Rings: Alloy Steel; Min. 5,000 lbs. tensile strength
• Tensile Strength: Min. 5,000 lbs.
• Max. Capacity: 425 lbs. To maintain ANSI Z359 compliance, limit total user weight to 310lbs
• OSHA: CFR1926.502, CFR1910.66
• ANSI: A10.32?2004, Z359.1?2007

Forged D-ring and Bolt-on Plate; Provides Simple Overhead Anchorage Solution. The Bolt-On D-Ring Anchorage features a rugged forged alloy-steel construction, and a 5,000 pound minimum breaking strength. This bolt-on D-ring can be mounted vertically or horizontally to concrete or steel by welding on or by using grade 5 or better hardware (not included). FallTech has developed a broad line of anchorage connectors and slings to help address the difficulties associated with designating and rigging proper anchor points in nearly any environment. FallTech knows that finding a way to tie off is not always easy, therefore we have developed multiple design compatible components engineered and tested to bring you and the anchor point together. To ensure maximum safety, FallTech anchorage devices and connectors are thoroughly tested and engineered to adapt to nearly every anchorage need where connection of a fall arrest system to a 5000 pound anchor point is necessary. All FallTech anchors and connectors meet or exceed OSHA and ANSI standards.
